Access chambers



Access chambers, maintenance shafts, or manholes all describe the same product group - a vertical shaft that connects pipes to the surface. Humes use the term access chambers to describe systems that allow worker entry, and maintenance shafts for non-worker entry systems.

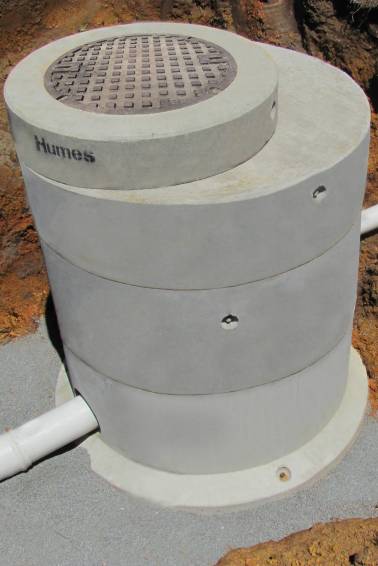

The Humes range of precast concrete sewer access chambers are suitable for a depth of 9m in accordance with AS4198-1994 Precast Concrete Access Chambers for Sewerage Applications. The bases are suitable for new residential and commercial developments, joining into existing sewer lines, replacing existing access chambers, vacuum collection and isolation chambers, and as air valve and scour pits, overflow and discharge chambers.

Humes manufacture a range of components including precast bases, shafts, taper/squat tops, converter slabs, make up rings, covers and surrounds. Various joint types are available to meet your local requirements and conditions.

Cored holes and precast benching can be placed at any angle making the system capable of accommodating all inlet configurations. The unique Humes Supabowl® conical precast base has an internal surface in the shape of an inverted cone, which provides the same hydraulic efficiency as traditional channel benched bases but provides superior self-cleansing under surcharge conditions. This design eliminates the need for a separate benching process and greatly improves supply lead times.

We manufacture complete access chamber structures to satisfy various local codes, practices and physical site conditions.


The Supabowl® conical precast base

The Supabowl® has an internal surface in the shape of an inverted cone. The point of the cone is semi-spherical and acts as a node where incoming flows are concentrated prior to draining through a preformed outlet. Inlets are cored in the factory to suit site line and levels.

Extensive laboratory testing has shown that this type of base has the same hydraulic efficiency as traditional channel benched bases while displaying superior self-cleansing under surcharge conditions. The unique design concept eliminates the need for a separate benching process and greatly improves supply lead times.
